ZY-PDM1000U online monitoring system

A transformer is a device that uses the principle of electromagnetic induction to change AC voltage. The main components are a primary coil, a secondary coil, and an iron core (magnetic core). The main functions are: voltage conversion, current conversion, impedance conversion, isolation, voltage stabilization (magnetic saturation transformer), etc. It is a key device in the power system. Generally, transformers rarely fail. Once a certain defect occurs inside the transformer equipment, equipment failure is extremely easy to occur. Therefore, strengthening and improving the operation monitoring of transformer equipment is of great significance for ensuring the safe operation of transformers.

Category:

Solution customization

Keywords: online monitoring system | partial discharge detection

Contact us
Message

Product Description

　　A transformer is a device that uses the principle of electromagnetic induction to change AC voltage. The main components are a primary coil, a secondary coil, and an iron core (magnetic core). The main functions are: voltage conversion, current conversion, impedance conversion, isolation, voltage stabilization (magnetic saturation transformer), etc. It is a key device in the power system. Generally, transformers rarely fail. Once a certain defect occurs inside the transformer equipment, equipment failure is extremely easy to occur. Therefore, strengthening and improving the operation monitoring of transformer equipment is of great significance for ensuring the safe operation of transformers.
　　ZY-PDM1000U-T Transformer UHF Partial Discharge On-line Monitoring System is a new generation of high frequency partial on-line monitoring system launched by Zhenyuan Electric, providing you with a one-stop solution.
0
ZY-PDM1000 UHF partial on-line monitoring system diagram

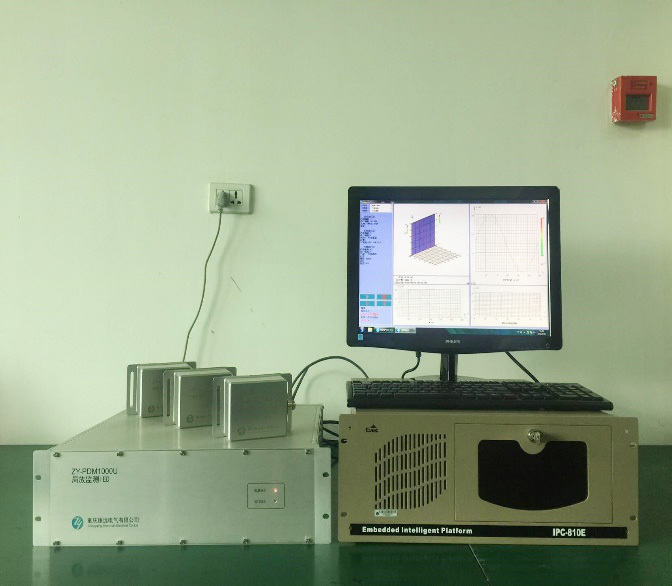

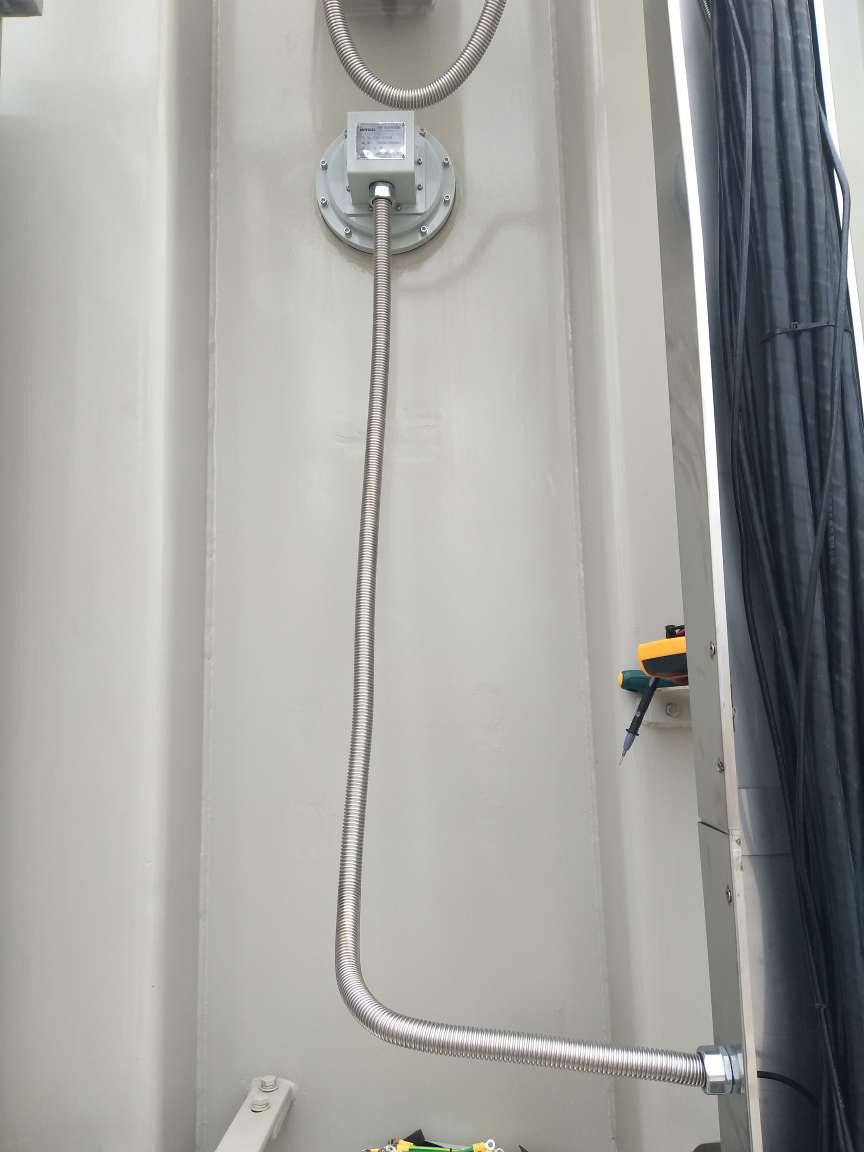

　　Our company's UHF partial discharge online monitoring system consists of sensors, signal processing units, high-speed data acquisition and conversion units, and background analysis software. The system uses a high-speed data acquisition device with a high sampling rate and high signal accuracy. The display content includes PRPD and PRPS maps.
1

2

3

　　System Features
　　The sampling frequency of the system reaches G level, which is much higher than the peak-hold sampling system (usually several tens of megabytes) commonly used in products on the market.
　　Standard case (4U height), flexible installation position, can be installed in the exchange control cabinet, indoor and outdoor separate case. Plug-in acquisition card design, flexible configuration and optional channel number, easy to expand.
　　Can be networked to form a distributed monitoring system.
　　Adopt special sealing structure, good sealing performance, no oil leakage and air leakage.

　　System parameters:

Power supply voltage

AC220，50/60HZ

System detection range

0.3---1.5GHZ

Minimum input signal

-75dbM

Sampling Rate

1G/S

Number of channels

4/8

Size

4U

Installation method

HS cabinet, standard cabinet, wall-mounted, custom cabinet

EMC

4level

Communication method

Network port / optical port

Output result

Discharge phase, amplitude, frequency, type
