SML1000 intelligent detection ecological series products

Intelligent detection is a major issue for the planning and construction of the ubiquitous electric power Internet of Things system by the State Grid Corporation of China. It is also a key application for solving the problem of interconnection and data sharing of the operation inspection system. It is also an important basis for the practical application of big data analysis for equipment inspection.

Category:

O & M management ecosystem

Keywords: online monitoring system | partial discharge detection

Contact us
Message

Product Description

　　Intelligent detection is a major issue for the planning and construction of the ubiquitous electric power Internet of Things system by the State Grid Corporation of China. It is also a key application for solving the problem of interconnection and data sharing of the operation inspection system. It is also an important basis for the practical application of big data analysis for equipment inspection.
　　The SML1000 intelligent detection ecosystem is based on the design concept of asset life-cycle management, and uses the technology of "ubiquitous electric power IoT" to implement the intelligent and efficient operation of the detection business management process and operation process as the technical route to solve the detection element. Issues such as the Internet of Things, standardization of testing processes, standardization of testing information, intelligent data analysis, and lean management of testing are the goals of the work, to build a complete "ecology" of intelligent testing services, and to promote the intelligentization of testing services, testing data management, and asset equipment management. Direction.
　　SML1000 system currently has two versions:
　　The first one is composed of intelligent detection instrument, detection black box, intelligent detection and interaction system platform, and detection APP. The use scenario is a substation that has completed the RIFD label construction;
　　The second is composed of intelligent detection instruments, intelligent detection and interaction system platform, and detection app. The use scenario is a substation that has not completed the RIFD construction, which is a transition plan before the completion of the RIFD electronic label construction.
1

　　1.Introduction of intelligent detection and interaction system platform
　　The platform consists of a test plan management module, a test project management module, a test data management module, a test resource management module, a system management module, an organizational structure management module, a configuration management module, and a social resource test management module. Reporting inspection process management.
2
　　2.Introduction to detection APP
　　APP function mainly realizes the information interaction and query between the inspector and the platform:

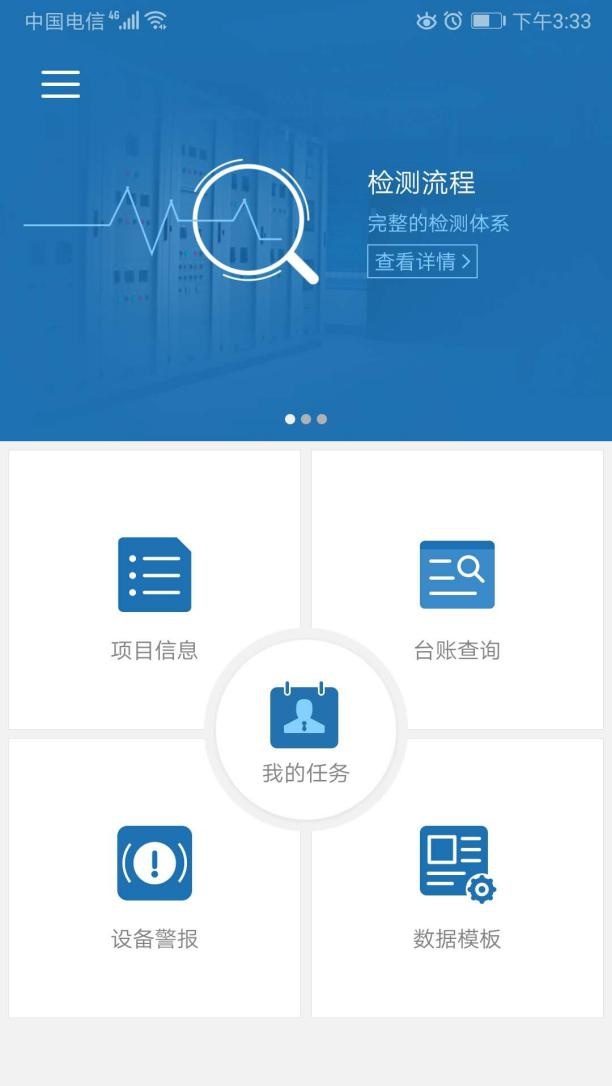

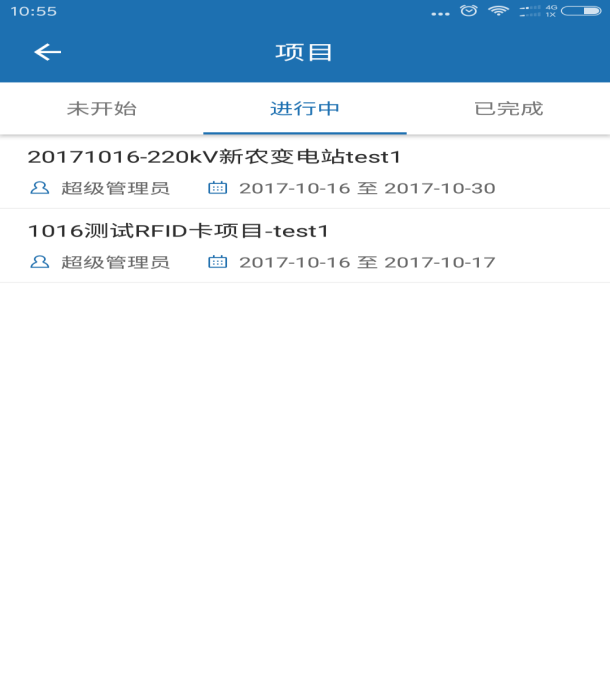

　　Project information, my tasks, equipment alarms, data templates, detection task related personnel query the tasks, data, etc. through the detection APP.
1    2

5  5

　　3.Detect black boxes
　　As an accessory of the tester instrument, the test black box mainly has three functions: data processing, communication, and acquisition of the ID of the device under test. It has two forms, one is embedded in the tester and the other is a supporting device for the tester. Equipment, which solidifies and standardizes the detection process, converts the received instrument upload data into a standard data protocol, correlates the ID information of the device under test, supplements it with necessary edge computing processing and uploads it to the background.

7    8

9    10

　　4.Introduction of intelligent detection instruments

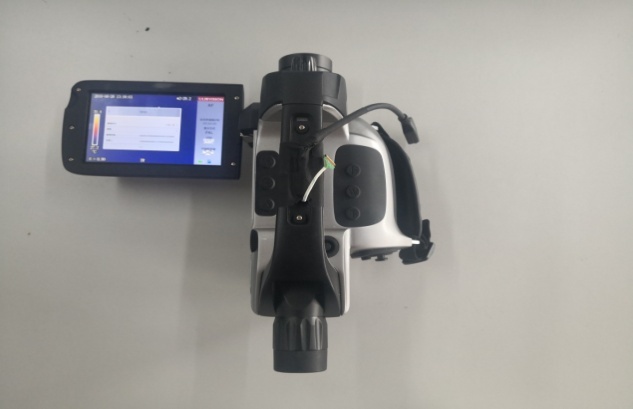

　　At present, the intelligent detection platform has access to all live detection equipment, including: partial discharge detection equipment, infrared detection equipment, leakage current detection equipment, ground current detection equipment, SF6 detection equipment.
　　The principle of openness is a principle of the design of this system. Minimize the change of testing instruments. Customers can choose testing instruments and equipment manufacturers to access the system according to their needs.
1    2

3    4

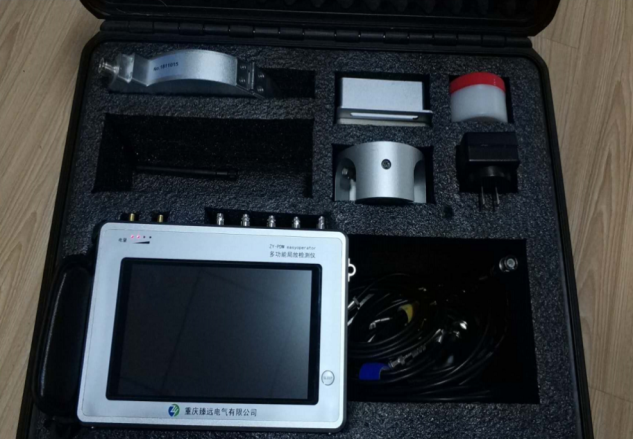

Partial discharge, infrared, micro-water detector



图片名称

+

SML1000 intelligent detection ecological series products

→

Intelligent detection is a major issue for the planning and construction of the ubiquitous electric power Internet of Things system by the State Grid Corporation of China. It is also a key application for solving the problem of interconnection and data sharing of the operation inspection system. It is also an important basis for the practical application of big data analysis for equipment inspection.

图片名称

+

ZY-PDM1000U online monitoring system

→

A transformer is a device that uses the principle of electromagnetic induction to change AC voltage. The main components are a primary coil, a secondary coil, and an iron core (magnetic core). The main functions are: voltage conversion, current conversion, impedance conversion, isolation, voltage stabilization (magnetic saturation transformer), etc. It is a key device in the power system. Generally, transformers rarely fail. Once a certain defect occurs inside the transformer equipment, equipment failure is extremely easy to occur. Therefore, strengthening and improving the operation monitoring of transformer equipment is of great significance for ensuring the safe operation of transformers.

图片名称

+

DXK-ZY high voltage live display

→

DXK-ZY high-voltage charged display is a new type of device to prevent electrical misoperation. It is an inductive (non-contact) high-voltage charged detection device. The device has advanced design, reasonable structure, complete functions, safety and reliability. It has functions such as flashing display, audible alarm, fault self-test and activation of forced blocking circuit, etc., and has high sensitivity and reliability. This device is suitable for outdoor (also suitable for indoor) electrical network or equipment with AC 50Hz and rated voltage of 40.5 ~ 1100kV, and it is used to reflect the charged condition and prevent electrical misoperation. The device is installed on the line grounding knife switch, the bus grounding knife switch and the busbar pressure change grounding knife switch
